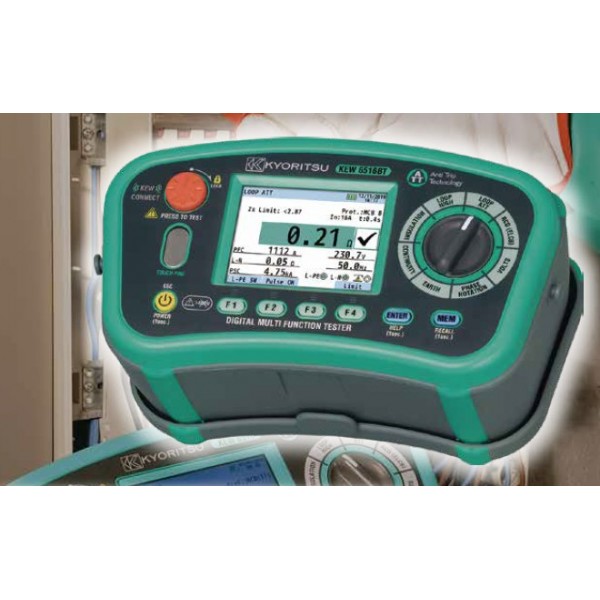

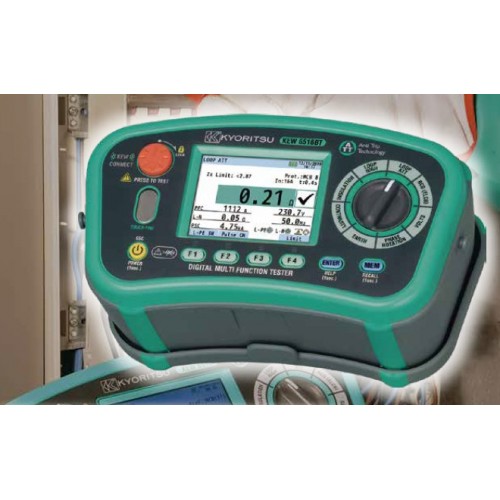

KEW 6516/6516BT Multifunction Installation Testers

12 in 1 Features:

ATT:

Anti-Trip Technology (with 2 & 3 wire) for no trip LOOP L-PE testing on all RCDs. With 2 wire only, very useful in case of no Neutral (i.e. 3-phase motor lines).

LOOP:

・High test current range of 2Ω with 0.001Ω resolution.

・Zs Limit compares the values required by Electrical Installations Standard with measured results.

RCD:

・Type AC, A, F, B(General & Selective), EV and Variable RCDs.

・Single and Auto test, Ramp test and Contact voltage.

EARTH:

Earth resistance test 2 and 3 wires with all accessories included.

INSULATION:

Resistance test 100, 250, 500 & 1000V with auto discharge voltage.

CONTINUITY:

Continuity test at 200mA or 15mA with selectable buzzer for fast judgment.

PHASE ROTATION:

On 3-phase lines with clear indication of the sequence on the display.

VOLTS:

TRMS Voltage measurements 2 to 600V, Mains Frequency.

HELP:

Display shows how to connect the instrument according to the function selected.

SPD:

Surge Protection Device test, for SPD that uses varistor.

PAT:

Portable Appliance Tester function, for Insulation and Protective conductor resistance test

SAFETY:

IEC 61010-1 CAT Ⅳ 300V / CAT Ⅲ 600V, IEC 61557-1,2,3,4,5,6,7,10.

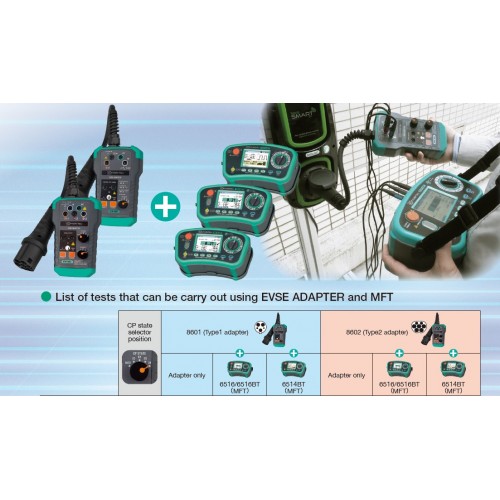

Additional EV (Electrical Vehicle) Testing add-on KEW 8601 or 8602 EVSE Adapter
