TVBTech 3399F/3399FB 38mm Sewer Drain Pipe Inspection Camera System with 40m/130ft ~ 60m/200ft Cable

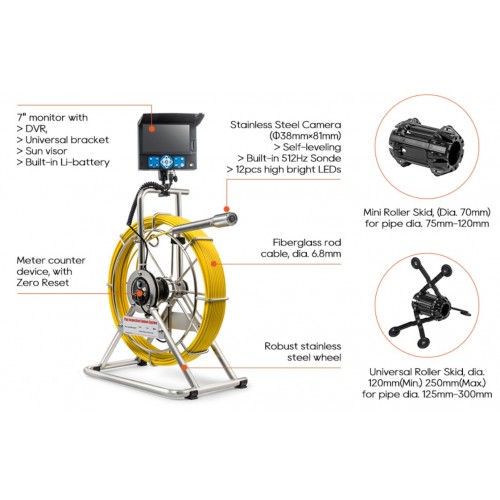

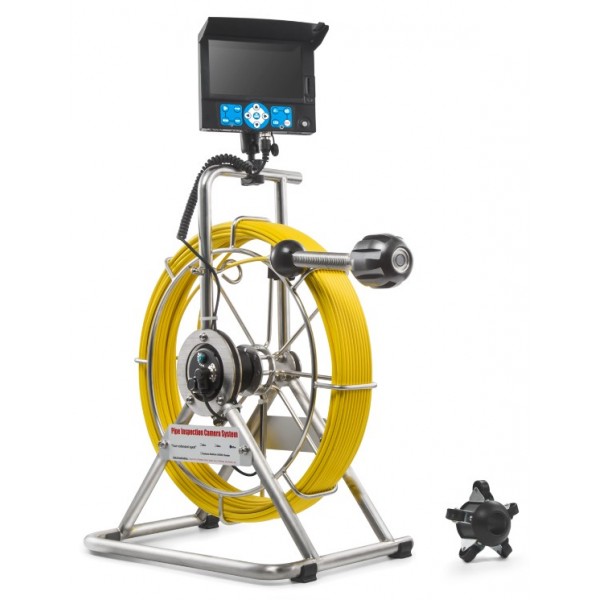

This is a Drain/Pipe Inspection Camera that comes with self-leveling feature 38mm camera head, a removeable 7inch LCD monitor with DVR, a 40-60m fiberglass push cable reel, all parts (including camera head, monitor, cable etc) are mounted on a robust stainless-steel wheel.

This system is widely used in inspections of Sewer, central air conditioning, chimney, plumbing, building, cable pipe and pipes ventilation systems and other places.

3399F Features: Video Pipe Inspection Camera with 40, 50 or 60m fiberglass cable and 7" monitor with DVR feature

Camera Head:

• Material: #304 Stainless Steel
• Dimension: ￠38mm×81mm（Main body）
• Sensor: 1/3” Sony CCD, 480 TV Lines
• View Angle: 120°
• Focal Distance: 12-120cm
• Two Roller Skids, Mini one at dia.72mm, another universal skid at dia. 115-250mm
• LEDs: 12pcs high light LEDs
• Waterproof: Max. 20m under water
• With self-leveling feature
• With meter counter feature
• Built-in 512Hz Sonde (optional)
• With keyboard for text input (English only)

Cable:

• Cable dia. 6.8mm
• Cable length: 40/50/60m for option

Monitor:

• 7” LCD color TFT LCD
• With universal installation brackets
• SD Card slot to store still pictures or videos
• One push record button
• Built-in rechargeable battery lasts up to 5 hours
• On-Screen date and time
• On-screen meter/ft. distance display

• 7" Monitor, battery and keyboard are mounted inside a rain
• resistant toolbox
• Guides 8-934 and 8-945 are included.
