Feature:

Simultaneous Power & Power quality measurements
- Power/ Harmonics/ Waveform/ Power quality are recorded at all CHs. (Voltage: 3ch, Current 4ch)
Helpful support functions
- Quick Start Guide, Wiring check and Sensor detection for easy and reliable measurement
Measurement with high accuracy
- Guaranteed accuracy:±0.3%rdg (energy),±0.2%rdg (voltage/ current)
  Complies with the International Standard IEC 61000-4-30 Class S and the European Standard EN50160
Remote monitoring on PC and Android device
- Remote checking of measurement in real-time is possible via Bluetooth communication.
- Recorded data can be saved in the supplied SD card.
- EN50160 report can be generated after survey by PC software.

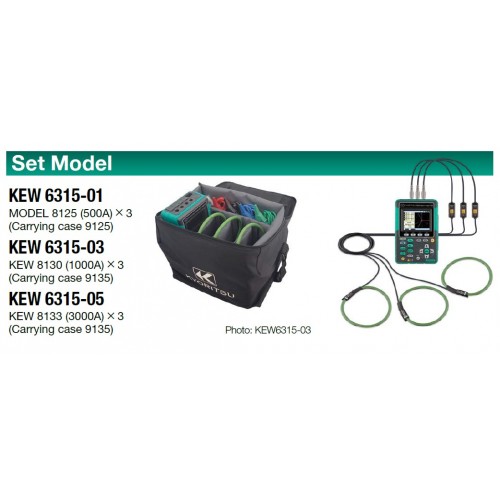

Various Clamp Current Sensors
- Various types of clamp and flexible sensors are available:
  from 1000mA Range up to 3000A Range and Earth leakage measurements
- Energy consumption check on site
  Trend and demand graphs for easy recognition.

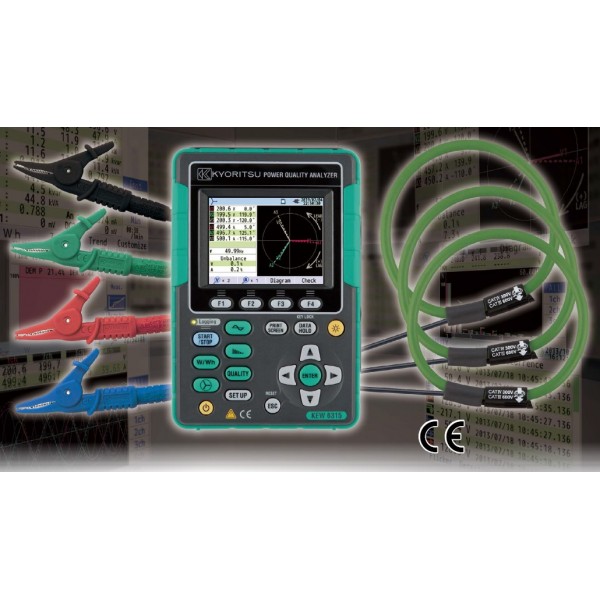

  TFT color display with high resolution.
IEC 61010-1 CAT IV 300V, CAT III 600V, CAT II 1000V
