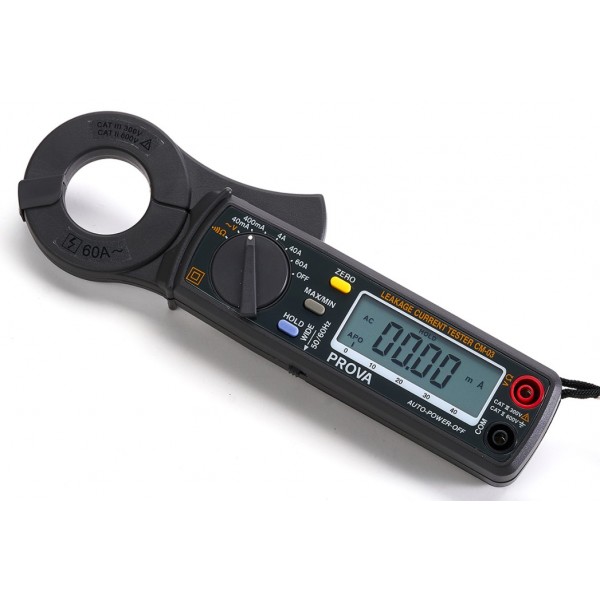

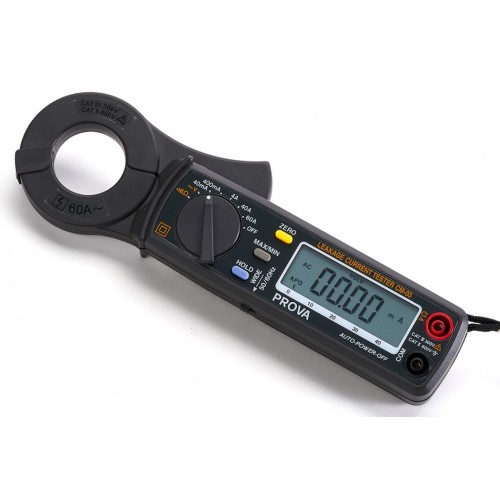

PROVA CM-03 AC Leakage Clamp Meter

Features:

■ Accurate AC digital clamp meter for leakage current measurement

■ AC current measurement: 0 ~ 60A (40mA/400mA/4A/40A/60A)

■ AC voltage measurement: 0 ~ 400V

■ 10µA ultra high resolution on 40mA range

■ Shield transformer jaws to minimize the effect of external stray magnetic field.

■ Large jaw with 30 mm diameter.

■ A filter circuit is designed to eliminate the effect of high frequency noise and harmonics for AC current measurement.

■ Large 3 3/4 digits LCD

■ Fast bargraph display (30 times/sec.) for transient observation.

■ Continuity and Frequency measurements.

■ Max/Min, Data Hold functions, and Relative Measurement

■ Easy single rotary switch for any function selection

■ 600V overload protection for ohm measurement
