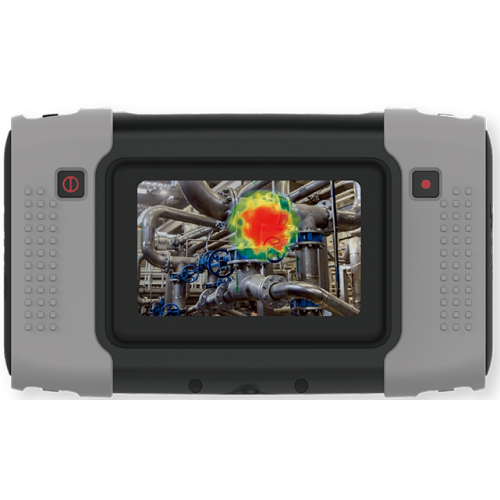

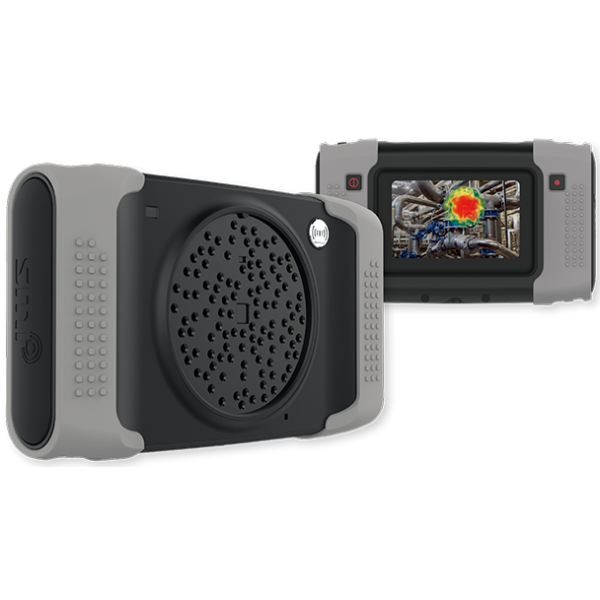

SMI BATCAM 2.0 Ultrasonic / Sound Camera for Gas Leak / Electric Arc / Abnormal Noise Detection

BATCAM 2.0 is the lightest and smallest ultrasonic and acoustic sound camera. This rugged, versatile tool can help you quickly and easily identify a variety of undesirable industrial conditions. With pinpoint accuracy the BATCAM 2.0 allows you to instantly see audible and ultrasonic noises that are hard to detect. With 112 MEMS based precision microphones, the BATCAM 2.0 will help you clearly see what you've been missing.

Gas leaks result in higher ultrasonic components than audible frequency. Ultrasonic components also occur when electric discharge occurs. Therefore, it is possible to measure the presence and location of gas leaks or electric discharge by measuring the ultrasonic components in a noisy environment.

BATCAM 2.0 can measure the leakage flow rate of 50 cc/min(0.0018 CFM) at a distance of 1 m and the leakage flow rate of 110 cc/min(0.0039 CFM) at a

distance of 10 m. If the leakage flow is greater, it can be measured from a longer distance.
