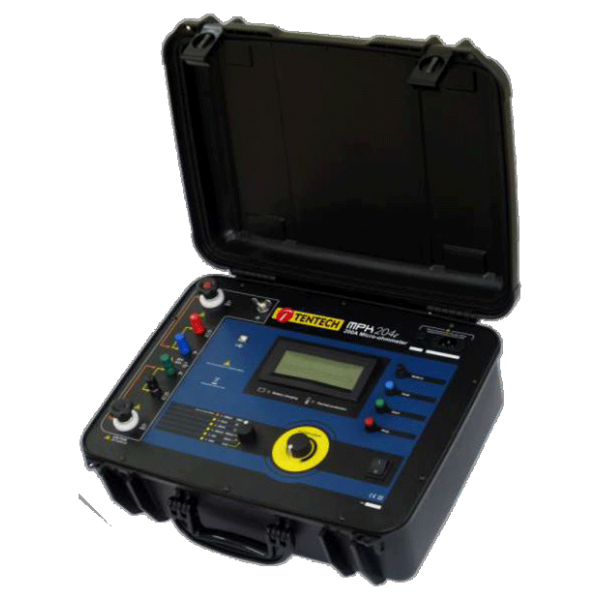

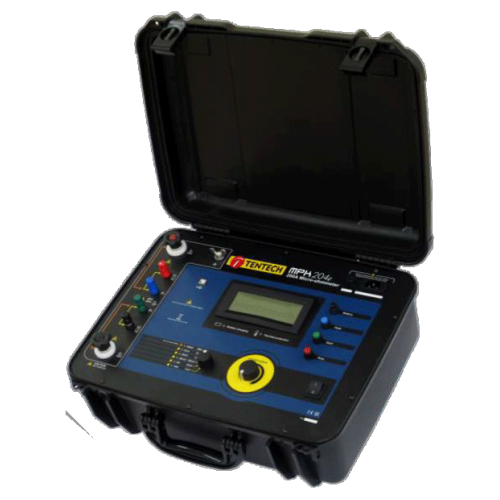

TENTECH MPK204e 200A High Current Micro-Ohmmeter

The MPK204e high current micro-ohmmeter is a portable, microprocessor-controlled instrument, used to accurately measure very low contact resistances of breakers and switches, busbars, transformers winding and engines, etc, with test currents from 1 mA to 200 A.

Features:

• Microprocessor controlled
• Alphanumerical display
• Resolution down to: 0.1 µΩ
• Resistance reading up to: 200 Ω
• Up to 200 A test current
• Kelvin-type (4 - wires) measurement
• Powered by internal battery (up to 10 A) or mains supply
• Direct reading (up to 4½ digits)
• Overheating protection
• Serial data output (USB)
