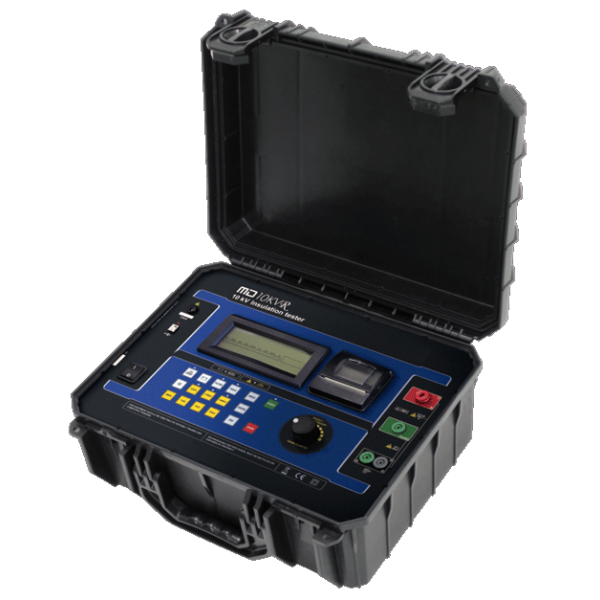

TENTECH MD10KVR 10kV Digital Insulation Tester

The digital insulation tester model MD10KVR is TENTECH’s cutting edge insulation analyzer equipment and it is one of  the most complete and sophisticated available in the international market. A software allows for further analysis of tests results, including features such as graphical representation and automatic report generation. Its proven technology provides safe, reliable and accurate measurements of insulation resistances up to 10 TΩ, with 4 preselected test voltages, 500 V - 1kV - 5kV - 10kV. Other test voltages may be selected in steps of 25 V, 100 V or 500 V.

Features:

• Insulation resistances up to 10 TΩ
• Step voltage test and ramp test
• Automated tests: absorption index, polarization index, capacitance, leakage current and AC/DC voltmeter
• Remote control through an Android app
• Auto-range
• Digital & bar-graph reading
• Chronometer up to 90 minutes
• Switchable filter to remove external noise interference
• Real time clock and calendar
• Built-in printer
• 16,000 readings memory
• USB interface
• Software for data management
• Rechargeable LFP battery
