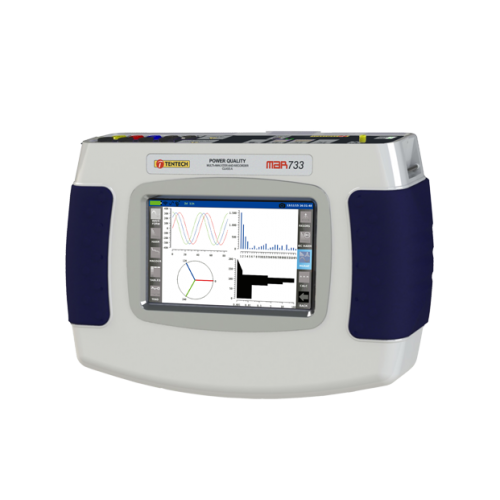

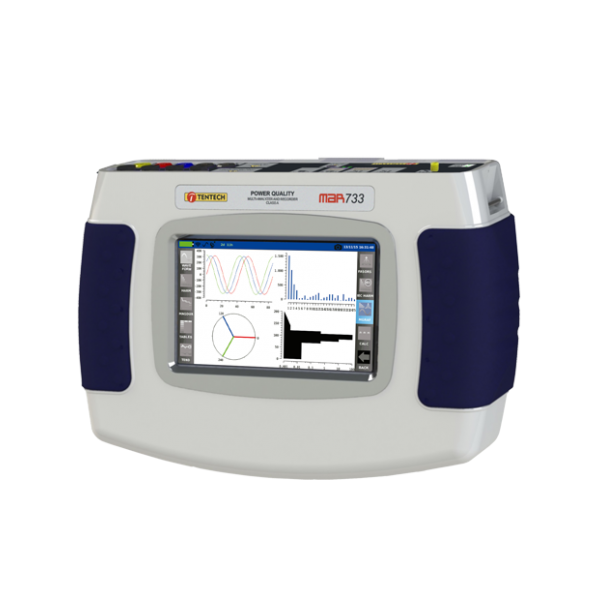

TENTECH MAR733 Power Quality Multi Analyzer and Recorder

The MAR733 Power Analyzer is designed to simultaneously acquire four voltage channels and four current channels. RMS magnitudes are measured using a 16-bit acquisition system, with 1024 samples per cycle taken for each of the eight channels. Transients are measured with a sampling frequency of 200 kHz, allowing for the detection of transients from 5 µs. This entire system runs continuously for all magnitudes and events.

Features:

7” TFT LCD touch screen color display
Intuitive user-friendly interface
Battery operating time >10 hours
16 GB internal memory (32 GB optional)

Standards:

Measurement methods = IEC 61000-4-30 (class A)
Harmonics = IEC 61000-4-7
Flicker = IEC 61000-4-15
Transients = IEEE 1159
Monitor mode = EN50160
Selectable languages: English, Spanish and Portuguese

Write a review

Name

Review

Note: HTML is not translated!

Rating Bad Good

TENTECH MAR733 Power Quality Multi Analyzer and Recorder

Brand: TENTECH
Product Code: MAR733

Download Catalog
